AGDM1603-14/15 (Breathalyzer)

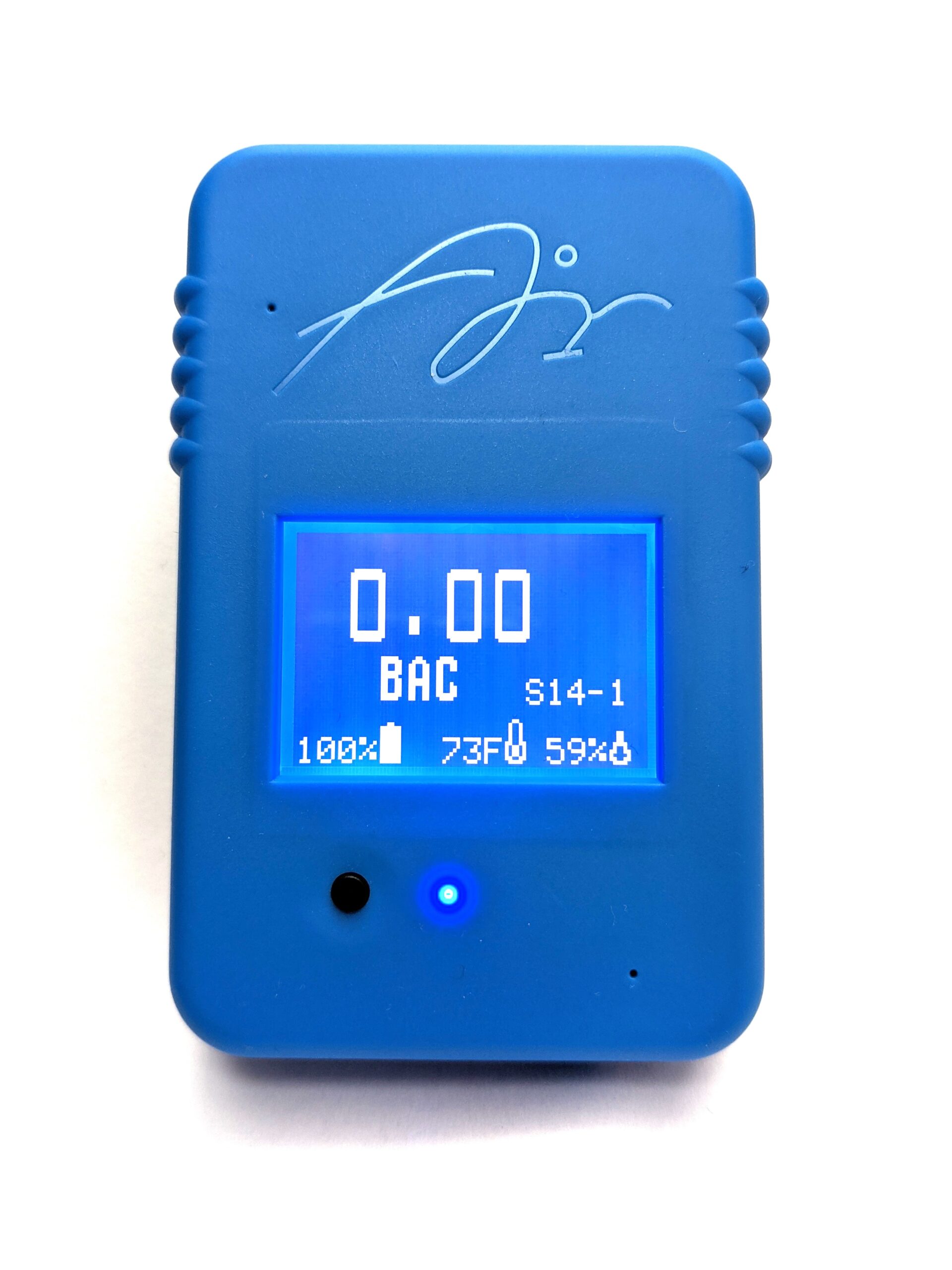

The device can be operated from a single pushbutton switch located on the front of the unit or by using a Bluetooth interface App for Android (IOS App is not available currently). The monitor displays gas measurement, device status, temperature, and relative humidity. The measurement is displayed in BAC for breathalyzer, or in blocks representing Safe to Hazardous for Air quality, or bar graph for relative density. It provides Alarm function that generates alarm sounds when gas level exceeds preprogrammed safe levels.

The App provides On/Off function, display mode selection and editing a Name for the device. It provides settings functions for Backlight intensity, Temperature unit F/C, Target gas and Screen save selection. The App displays gas measurements in simple readout or graphical time plot.

• External Power: Micro USB type B, capacity 5 Volts 375mA
• Power consumption: Sensor OFF; 10% Backlight and fully charged battery 100 mW. Sensor ON; 450 mW.
• Battery: internal Lithium-ion 3.7V, 400mAh.
• Operating temperature: -10 to 50 degrees Celsius.
• Storage: -30 to 70 degrees Celsius non-condensing.
• Calibration: calibrated using standard clean air or a Lab calibration gas with known concentration suitable for the device sensor.
• Bluetooth version 5.1
